0.13–0.30mm · tensile to 3,650 N/100mm 5 grades

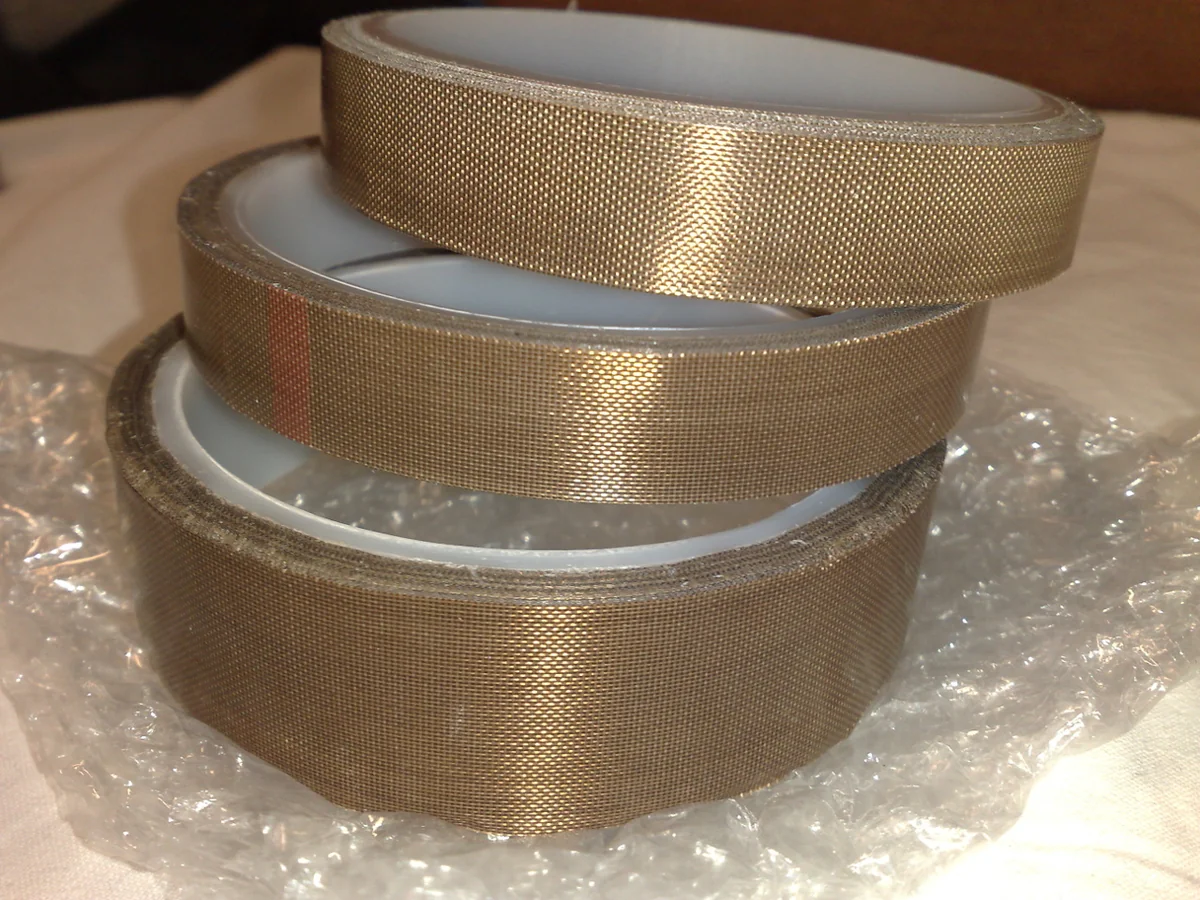

PTFE Adhesive Tape · F Series
Fiberglass cloth coated with PTFE and laminated with silicone adhesive. Five grades from 0.13 to 0.30mm — thickness sets the duty.
Industrial PTFE Adhesive Tapes & High-Temp Coated Fabrics
Factory-direct source for precision heat-sealing tapes (0.08–0.30mm), wide-format industrial fabrics up to 4,000mm, and heavy-duty mesh belts. Engineered for continuous -70°C to 260°C duty across packaging, electronics, and moulding lines worldwide.
0.08–0.30mm
Precision Slit Gauges
-70~260°C
Continuous Thermal Duty
4,000mm
Wide-Format Coating
≤ 8hrs
Engineering Quote Turnaround
ISO 9001 audited quality system
SGS tested coated product lines
FDA & LFGB food-contact compliance
Verified factory capability
-70~260°C
Working temperature
4,000mm
Maximum coating width
0.08–0.90mm
Thickness range
6,000 N/5cm
Peak tensile strength
<5%
Elongation at break
One coating platform
Six product lines. One platform.
Every CHUANDA line — adhesive tapes, skived film, coated fabric, mesh belts, silicone cloth and food-grade mats — runs on one fiberglass and fluoropolymer coating platform: 0.08–3.0mm, six lines, one QC system.
Explore the platformFactory-Direct Catalog
Six Coating Lines. One Platform.
From 0.08mm precision skived film to 4,000mm wide-format fabrics, air-permeable mesh belts, and FDA-compliant food mats — all manufactured and QC-tested in our Taixing facility.
0.08–0.25mm · 100% PTFE film 4 grades

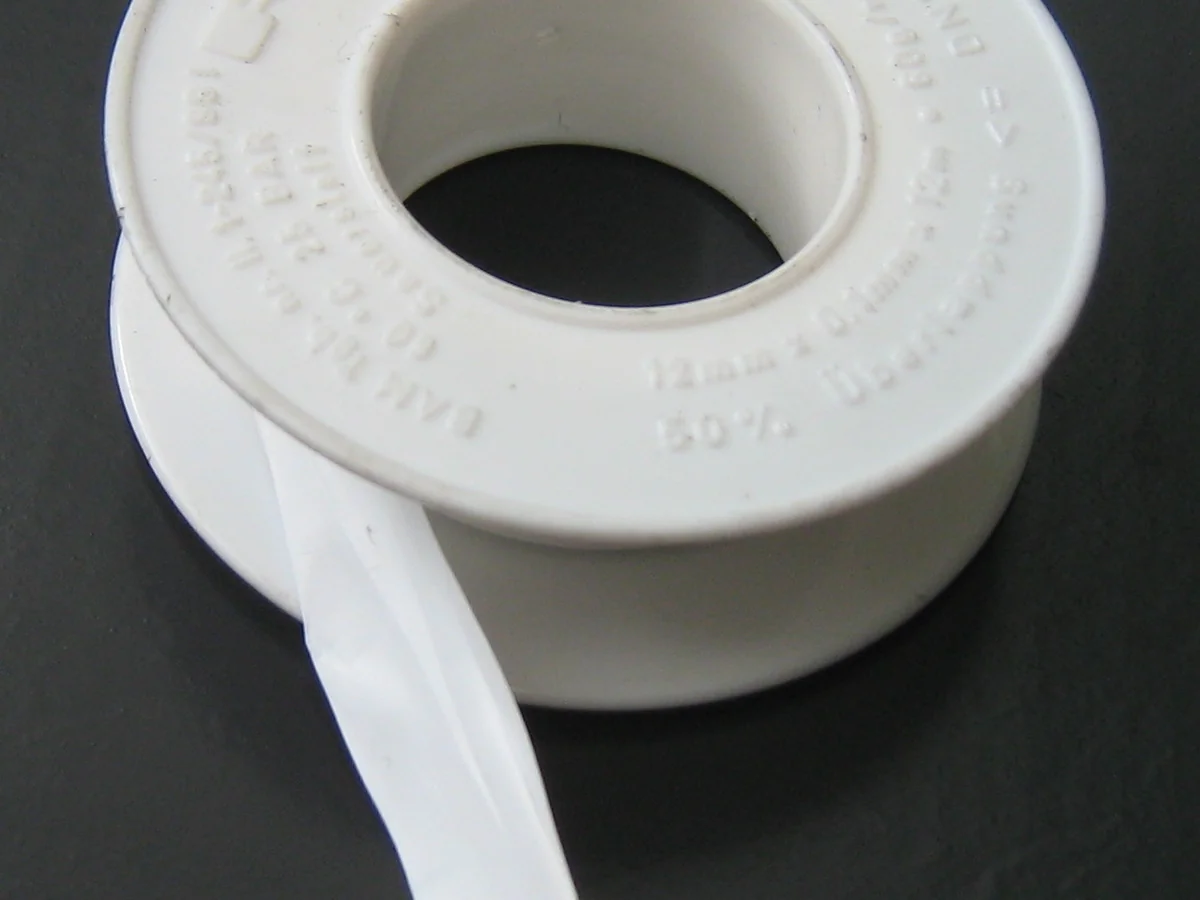

Pure PTFE Tape · FS Series
100% skived PTFE film with silicone adhesive — thinner and more conformable than glass-cloth tapes, for delicate sealing surfaces.
widths to 4,000mm · -140~260°C 4 grades

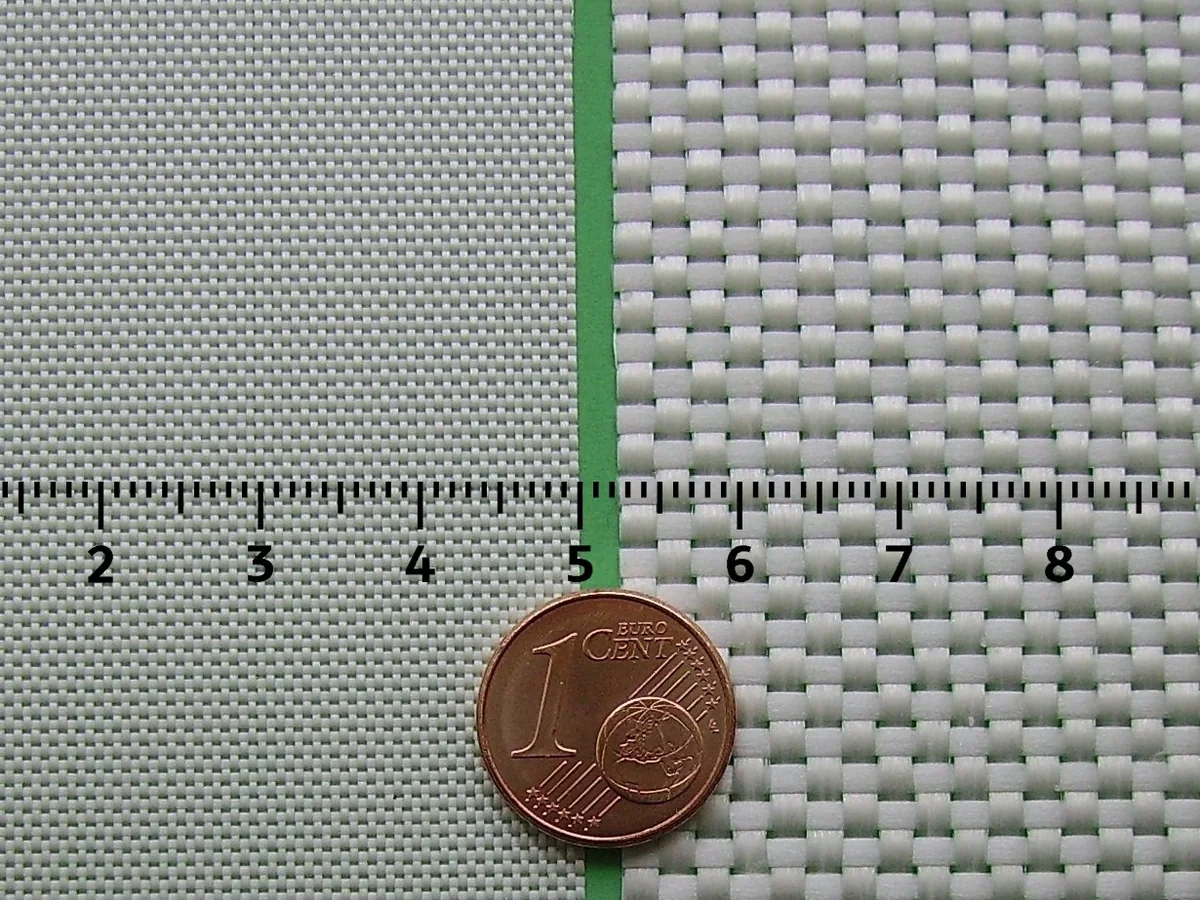

PTFE Coated Fabric · 90 Series
Imported fiberglass base cloth impregnated and coated with PTFE resin — four thickness grades, standard width 1,250mm up to 4,000mm wide-format.
mesh 1×1 to 10×10mm · widths to 4,000mm 1 model
PTFE Mesh Conveyor Belt
Woven fiberglass mesh coated with PTFE emulsion — air flows through the belt, which matters for drying, curing and heat-shrink lines.
0.25–3.0mm · breakdown 20–50 kV/mm 1 model
Silicone Coated Fiberglass Fabric
Fiberglass base cloth coated with silicone rubber — twelve models from 0.25 to 3.0mm carrying dielectric strength up to 50 kV/mm.
FDA & LFGB · >4,000-use service life 2 grades
Food-Grade Mats & Liners
Dedicated food-contact lines on the same coating platform — silicone baking mats with fiberglass cores, >4,000 uses each, and PTFE oven accessories rated to 260°C.

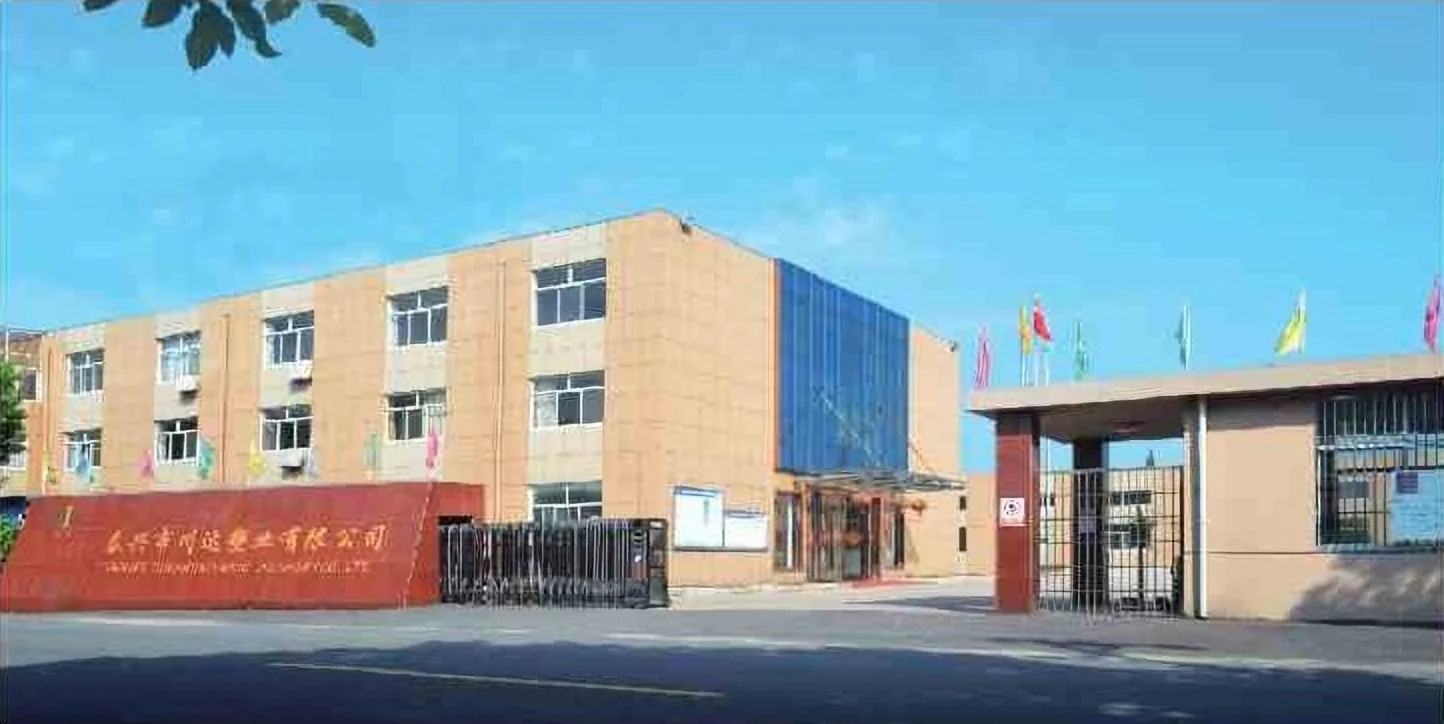

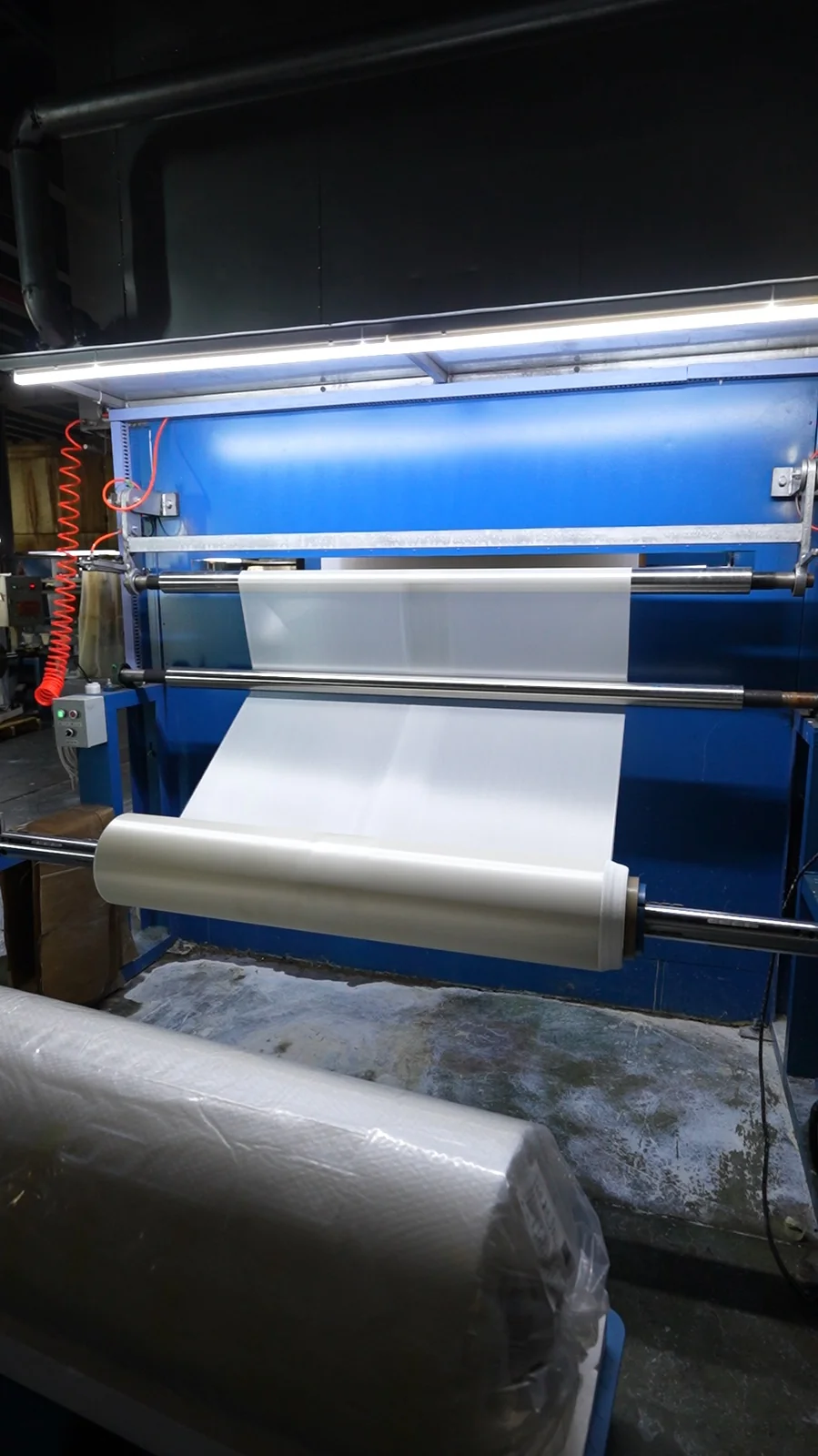

Audited Manufacturing Plant
Direct from the Coater, Not a Trader.
Taixing Chuanda Plastic Industry Co., Ltd. operates a high-precision fluorine and silicone impregnation coating platform in Jiangsu. Established among the pioneers passing ISO 9001 and SGS audits, our facility supplies reliable materials to over ten countries worldwide.
±0.01mm
Coating thickness tolerance
22–62 N/100mm
180° calibrated peel adhesion
To 6,000 N/5cm²
Tensile fracture resistance
20–50 kV/mm
Dielectric breakdown tested
- ISO 9001:2015 & SGS certified quality assurance system
- FDA & LFGB food-contact compliance on all baking lines
- Full audit certificate scans available on request
LIVE
—
Visitors today
-70~260°C
Working range
4,000mm
Coating width
10+
Export countries
FAQ
Buyer questions, straight answers
Are you a manufacturer or a trading company? +
A manufacturer — one coating platform in Taixing, Jiangsu, producing and QC-checking all six product lines in one factory.
Can I request samples before ordering? +
Yes. Free testing samples are available on request for every line; we confirm stock availability for your grade and width in the same reply.
Can you produce custom widths, slit rolls or cut sheets? +
Yes — tapes slit to any width up to 1,250mm (F series) or 600mm (FS film), coated fabric and mesh belting up to 4,000mm wide, and food-grade mats cut to your specified dimensions.
How do I choose the right tape grade for my application? +
Thickness sets the duty: 0.13–0.18mm light packaging seals, 0.20mm balanced sealing bands, 0.25–0.30mm heavy-duty demoulding and sizing rollers. Every product page carries a full line comparison table.
What are your typical lead times and minimum order quantities (MOQ)? +
Standard tape rolls and sample cuts dispatch within 48–72 hours. Custom slitting and wide fabric orders generally take 7–10 working days. Low trial MOQs are supported for technical qualification.
What international food-contact and quality standards do you comply with? +
Our factory operates under an ISO 9001 certified quality management system. Food-grade mats and liners comply with FDA and LFGB requirements. Formal test reports and certificate scans are available upon request.
Let's spec your production line.
Tell us the machine, the temperature and the width — we answer with a grade recommendation, a price and sample availability.
